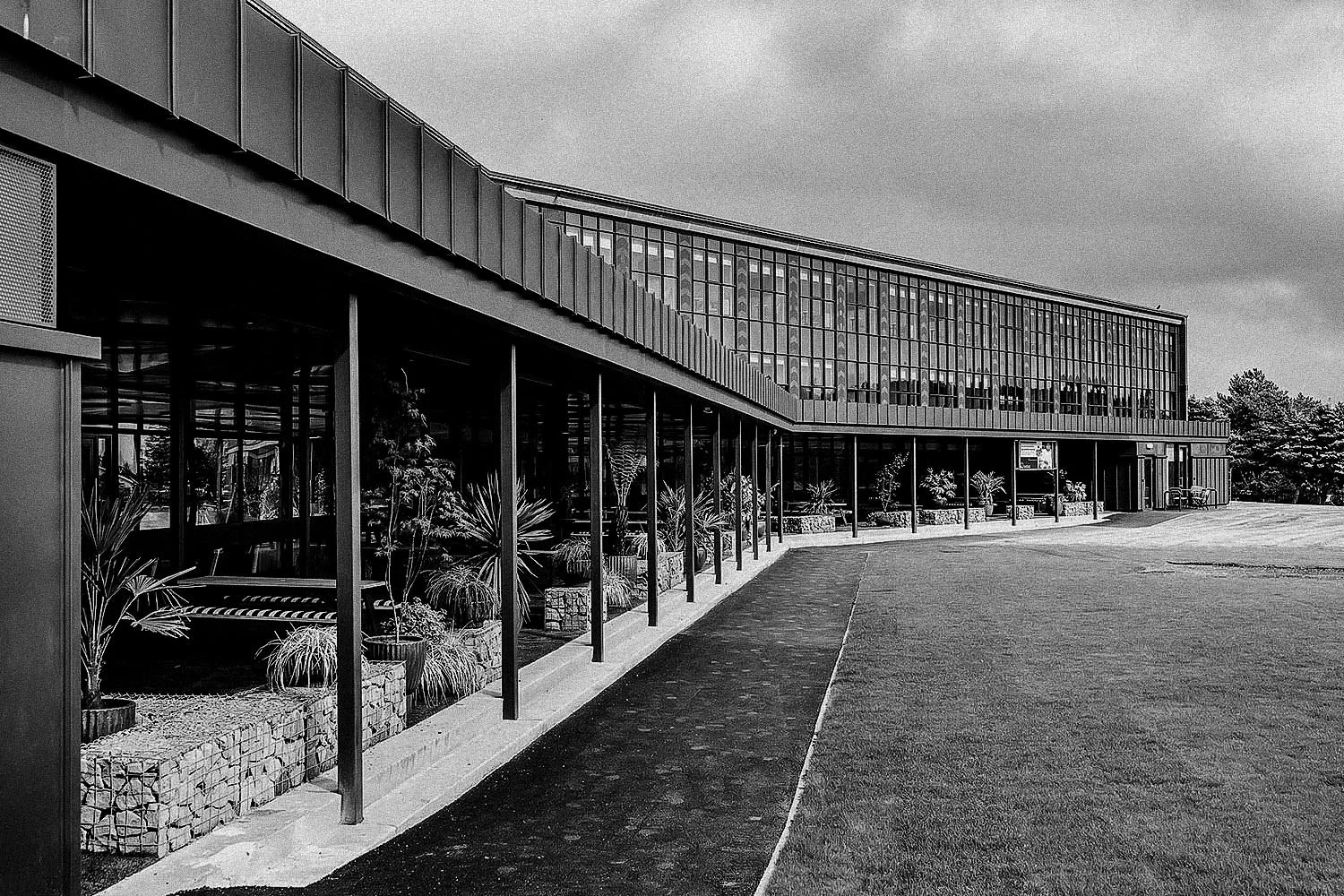

SPACE Accommodation
St Andrews, Scotland
2024 - 2026
We were asked by our client to design, install and commission a new L1 Fire Detection & Fire Alarm System in a brand new purpose-built student campus in St Andrews. Due to the high occupancy levels and varied fire risks, a reliable and compliant fire alarm solution was essential to ensure occupant safety and meet all legal requirements a building like this demands.
This multi-panel networked system covers a wide variety of studio accommodation, apartments, kitchens, event spaces, laundry rooms and study rooms all of which required a powerful and reliable solution. For this we used our OOH740 Multi-Sensors which suit these highly demanding environments and ensure optimal protection with no false alarms.
In addition to the fire detection, we have installed disabled refuge systems (EVC) throughout the campus ensuring the safe evacuation of occupants, especially those with mobility impairments. To compliment this we have also utilised a site wide paging system linked to the Fire System which can distribute critical messages across the property, providing accurate location alerts giving the client valuable time to investigate alerts and respond quickly and efficiently.
Following the installation and commissioning we provide routine fire maintenance inspections and system monitoring for fire response to ensure ongoing compliance and optimal performance of the system. The site was also added to the clients property portal where they now have full access to their reports, interactive floor plans and asset data.
Siemens Cerberus Pro (Control Epuipment)
FC724-ZE // Fire control panel (4-loop, P) in housing (Comfort) with 4 LED indicator
FT2010-A1 // Repeater Terminal
CXG3.X200 // Cloud Integration Gateway
FDCIO221 // Input/Output module (1 input and 1 output)
FDCIO222 // Input/Output module (4 inputs and 4 outputs)
Siemens Cerberus Pro (Devices)
OOH740 // Multi-Sensor Detector (ASAtechnology™)
DBS720 // Sounder Base
DB721 // Standard Base
FDM225 // Manual Call Point
FDS226-RR // Sounder Beacon
FDSB226-WR // Sounder Beacon Base
Linked Systems (EVC)
ECU-8 // C-TEC SigTEL 8 Line Master Controller with Handset
EVC302GS // Type B Green Handsfree EVC Surface Outstation
-
![]()

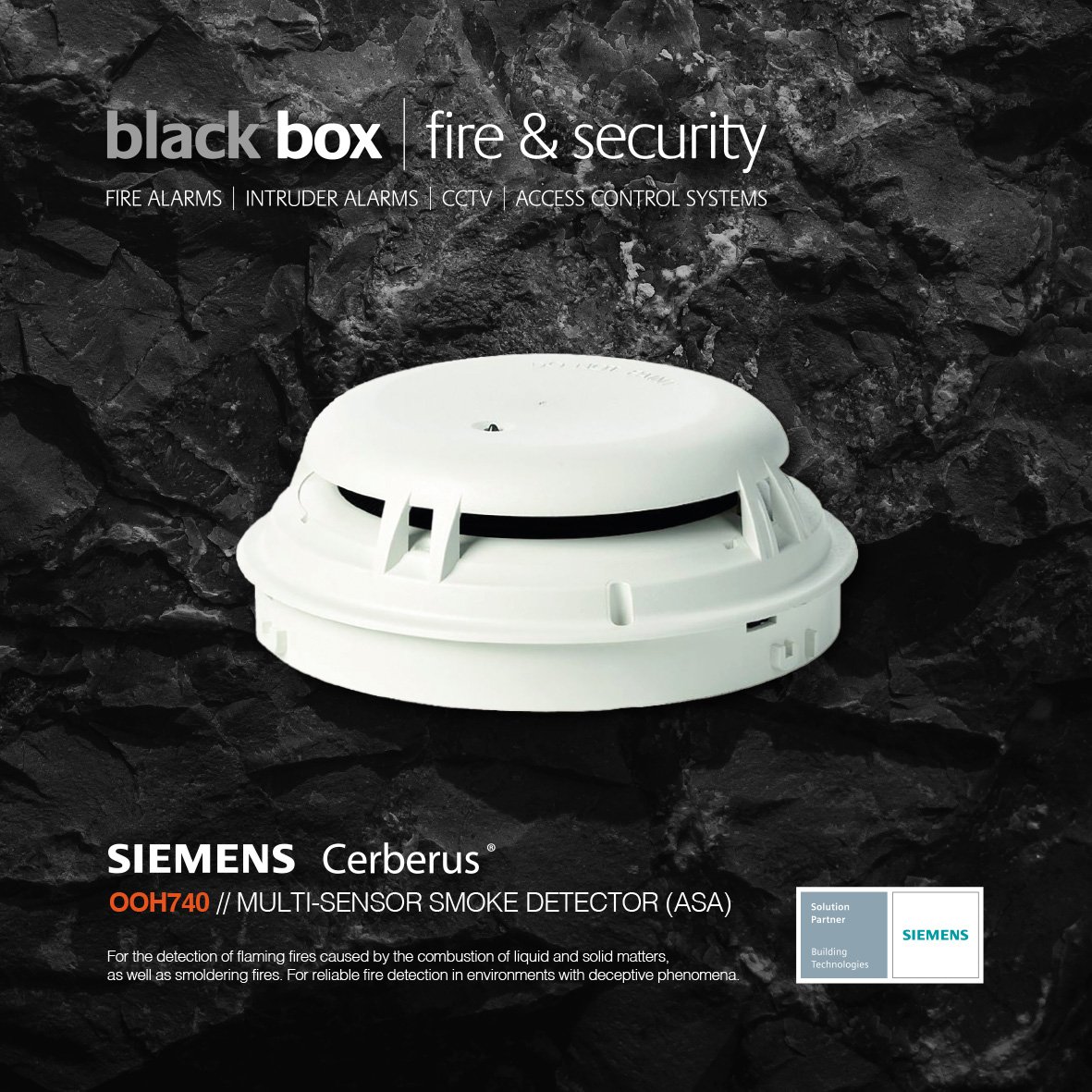

01. Siemens Cerberus PRO // OOH740 (ASA) Multi-Sensor Detector & DBS720 Sounder Base.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas like data centres, hotels and industrial production facilities. The sounder base DBS720 and the detector compose a single unit for use on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
-
![]()

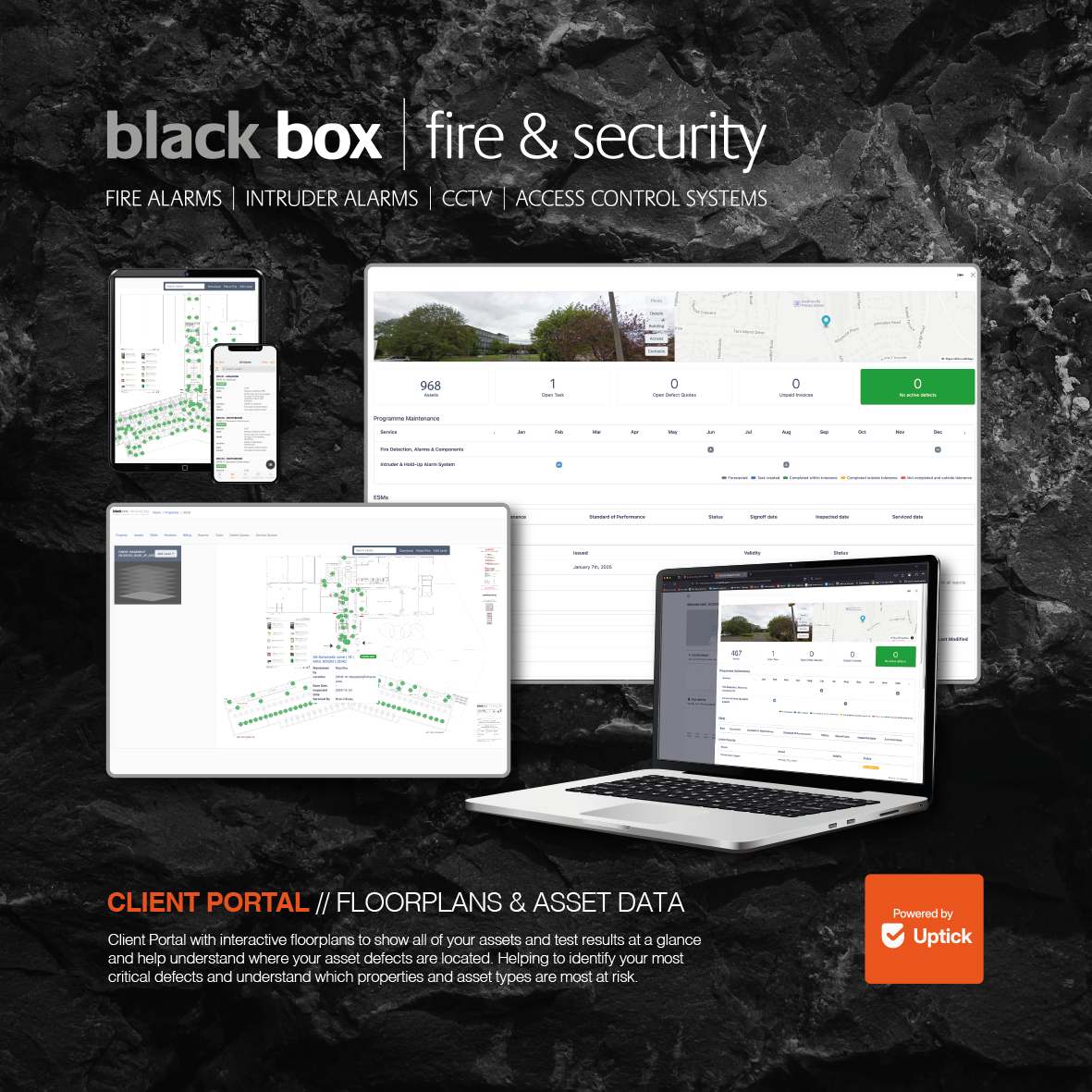

02. Client Portal // Floorplans & Asset Data
Full visibility for the client through our Online Portal after the installation. Giving them access to their entire property portfolio, along with interactive floorplans, asset data, photographs, service reports and certificates.
-
![]()
03. Siemens Cerberus PRO // OOH740 (ASA) Multi-Sensor Detector & DBS720 Sounder Base.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas like data centres, hotels and industrial production facilities. The sounder base DBS720 and the detector compose a single unit for use on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
-
![]()

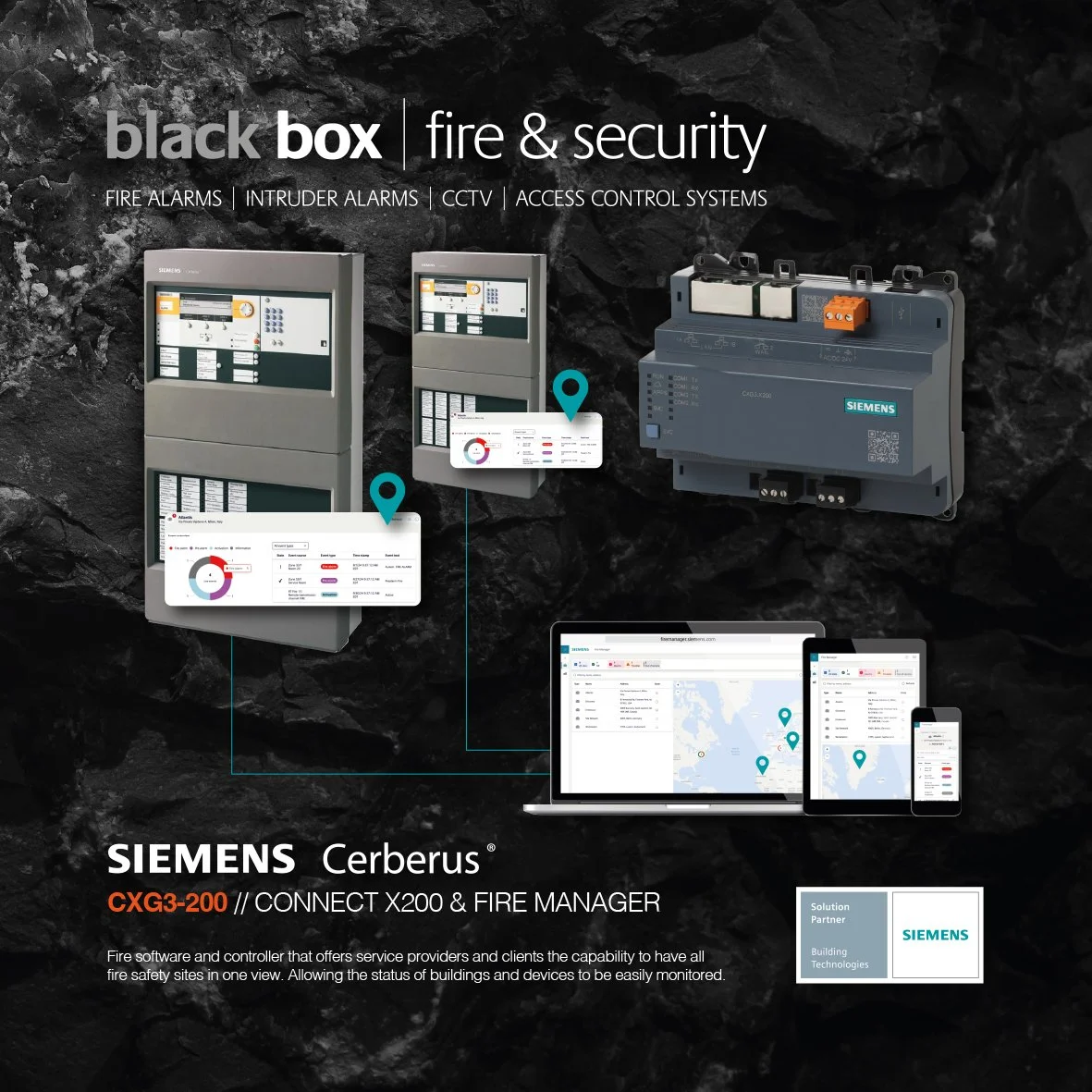

04. Siemens Cerberus PRO // CXG3-200 Connect X200 & Fire Manager.
We can manage the fire safety and condition of each connected system with our remote commissioning and monitoring app (Fire Manager) which also supports in-depth system reporting to allow offsite diagnostics and upload capabilities, efficient scheduling of maintenances and a saving in call-out fees and travelling time for the client.
-
![]()
05. Siemens Cerberus PRO // OOH740 (ASA) Multi-Sensor Detector & DBS720 Sounder Base.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas like data centres, hotels and industrial production facilities. The sounder base DBS720 and the detector compose a single unit for use on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
-
![]()
06. Siemens Cerberus PRO // OOH740 (ASA) Multi-sensor Detector.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas. In environments like data centres, hotels and industrial production facilities, you need highly advanced technology to ensure maximum safety and optimal protection with no false alarms
-
![]()
07. Siemens Cerberus PRO // OOH740 (ASA) Multi-Sensor Detector & DBS720 Sounder Base.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas like data centres, hotels and industrial production facilities. The sounder base DBS720 and the detector compose a single unit for use on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
-
![]()

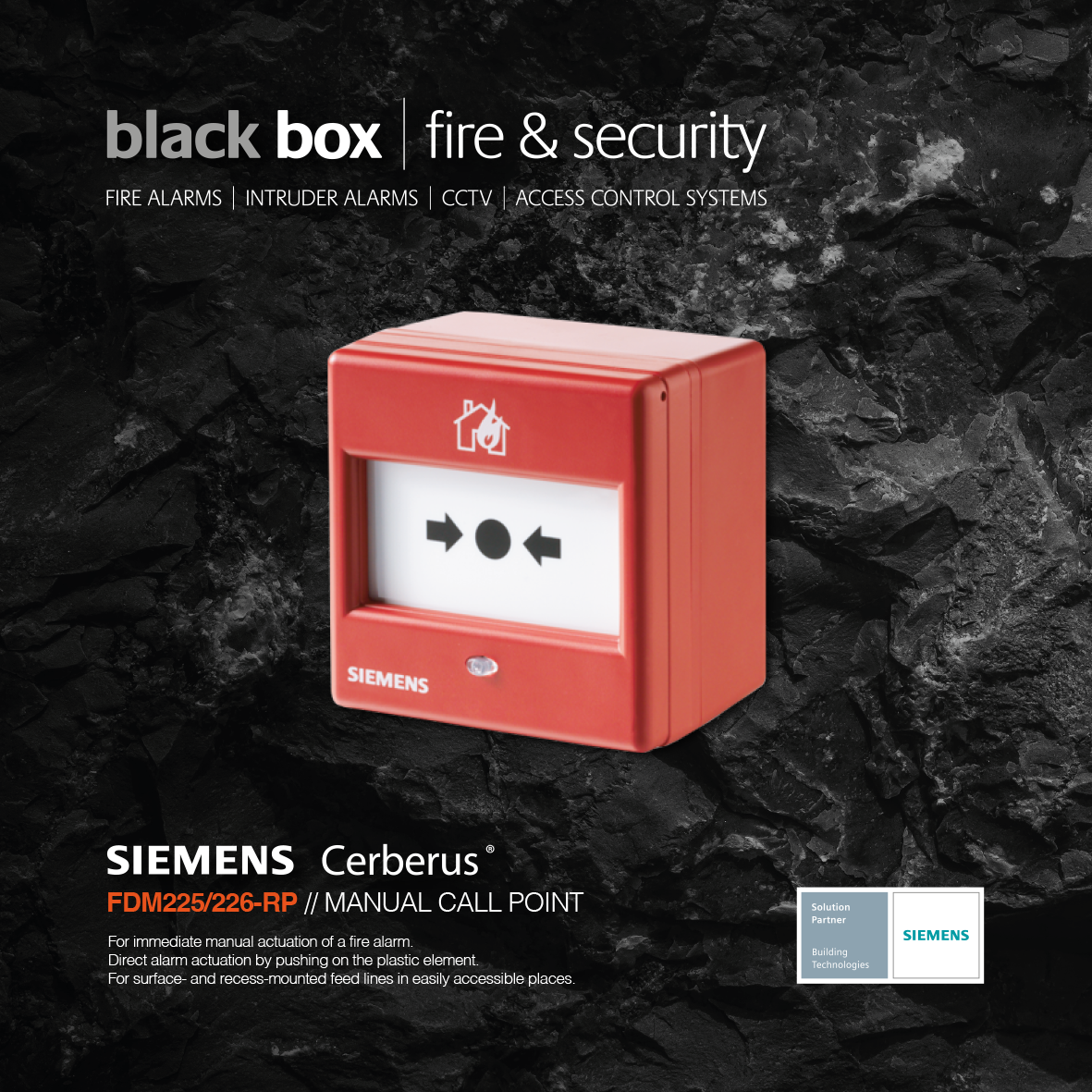

08. Siemens Cerberus PRO // FDM225-RP Manual Call Point & FDMH295-R Red Back Box.
For immediate manual actuation of a fire alarm. For indoor applications. Direct alarm actuation by pushing on the glass element. The pushbutton is reset with the key and the device is ready for operation again.
-
![]()
09. Siemens Cerberus PRO // OOH740 (ASA) Multi-Sensor Detector & DBS720 Sounder Base.
Detectors with the innovative ASAtechnology™ (Advanced Signal Analysis) are the best choice for protecting especially demanding areas like data centres, hotels and industrial production facilities. The sounder base DBS720 and the detector compose a single unit for use on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
-
![]()

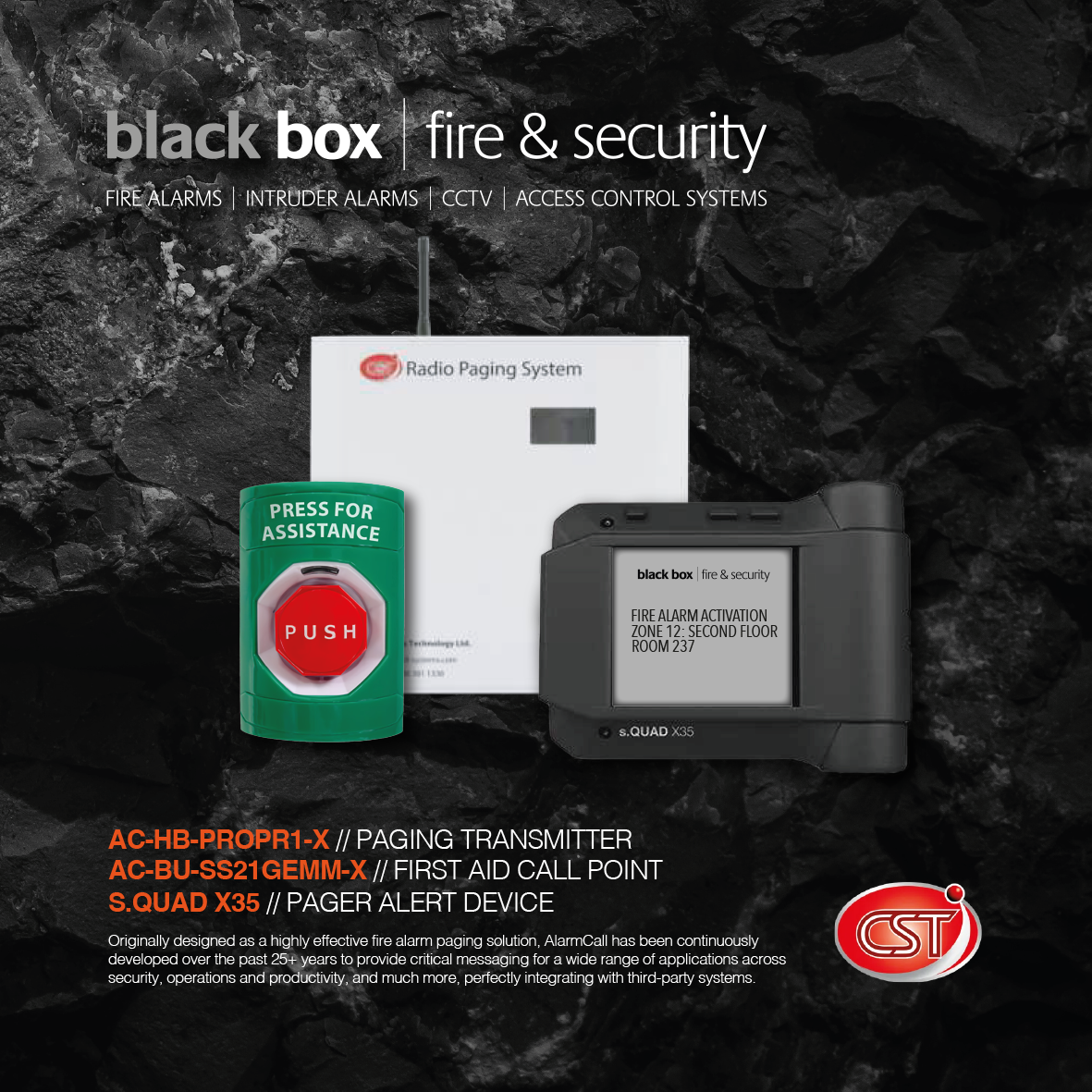

10. S.QUAD X35 // Staff Paging Device.
Staff pagers offer instant, reliable communication in locations where other messaging technology may struggle to receive coverage.The paging devices can integrate with our Fire System and provide an end-to-end solution in fire safety.
Our Business Development Team and Engineering Department consists of fully qualified BAFE & NSI Gold accredited designers and technicians who can project manage a comprehensive Fire & Security Solution to suit all of your needs.
